▌Functional Description

The host software runs in the Windows environment and is written in C++.

The   system   meets   the   AUTO-0    requirements   for unmanned engine cabin.

All operations can be performed using only the trackball (mouse).

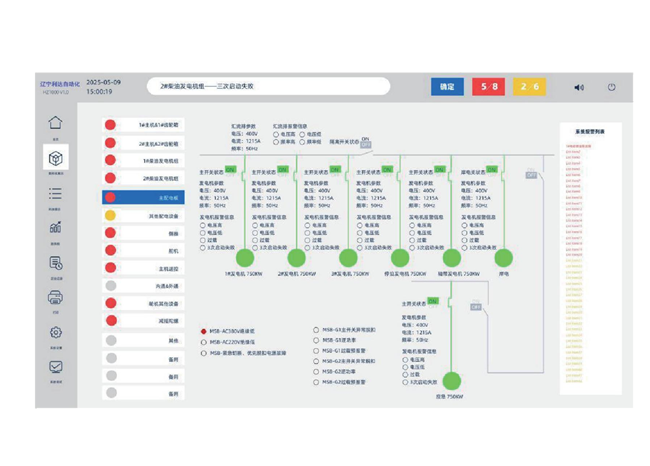

It  has color graphic display function  (can  be specially drawn according to user requirements).

It has the function of displaying user-defined list content.

Equipped with alarm list display function.

It  has the function  of displaying  alarm  history  archive content.

It has the function of displaying trend charts.

It has the function of printing records in Chinese/English.

Automatically archive the alarm history of the day in the hard drive every day.

No matter what content is displayed on the monitor,once there is a new alarm,the alarm speed display window will automatically appear.

Equipped with extended alarm function.

It  has  the  function  of  user-defined  timed  printing  list content.

It has the function of timed printing of user-defined lists to print content.

It has the function of selecting list blocks for printing.

Equipped with alarm list printing function.

It has the function of printing the alarm history of the day.

It  has  the  function  of  printing  alarm  history  archive display content.

On  site,you  can  choose  whether  to  print  at  regular intervals.

The  interval  time for timed  printing  can  be  modified on-site.

It has automatic and manual exit alarm functions.

Equipped  with  a  Chinese/English  interface  switching function.

▌Typical System Topology Diagram
