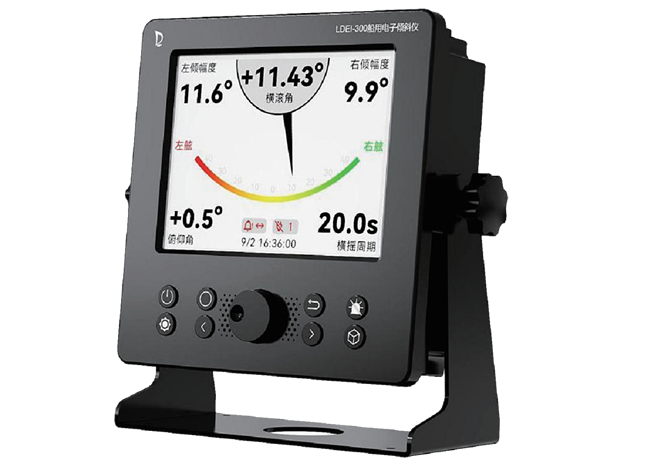

Electronic Tiltmeter
As a new generation of ship attitude monitoring equipment,the LDEI-300 marine electronic tiltmeter,with the core of "high precision,high stability and high fitness", can capture the data of ship's horizontal (horizontal)and vertical(longitudinal)tilts in real time,provide accurate data support for captain's decision-making,cargo loading and equipment protection,and avoid safety risks such as overturning and cargo displacement from the early beginning.It is an indispensable safety safeguard equipment for all kinds of ships.
LDEI-300 Marine Electronic Tiltmeter is in compliance with IMO MSC.363(92),IMO MSC.302(87),IEC 61162-1,IEC 61162-2,IEC 62923-1,IEC 62923-2,IEC 62288 And ISO 19697 and other standards and has obtained the CCS type approval certificate.
Product Introduction

▌Main Performance Index




·Rolling &Pitch Range-90°~90°

·Rolling Display Accuracy:0.01°

·Pitch Display Accuracy:0.1°

·Rolling Period Range:1~60S

·Rolling Period Accuracy:0.1S

·Allowable Lateral Acceleration: -0.8g~0.8g

·Measurement   Frequency:≥5times/s

·Working Temperature:-25°℃~+55℃

·Overall Power:<10W

·Over all Weigh:≤2kg



▌Display interface







▌System Configuration Diagram







▌Product Outline Drawing
