▌Technical Index

·The system is in accordance with CCS relevant standards.

·Power supply：AC380V50Hz,AC440V0Hz,DC24V,AC220V

·Operating mode：主舵、应急

·Operating range：±35°or customize range

▌Functional Characteristics

1.Main rudder steering：In the main rudder mode,the hand wheel on the main instrument can be used for manual steering

2.Emergency steering：In emergency mode,the emergency steering switch can be used for manual steering

3.Dual channel standby：The system is composed of two completely independent systems,which can be used for backup for eachh other.When the main system is powered off,the standby system will start automatically(1#and 2#systems can be used as the main system)

4.The oil pump and steering can be controlled in the steering engine room.When switching to the steering engine room,the main instrument in the wheelhouse will not control again.The steering is controlled by the steering switch in the engine room

5. Complete alarm function to ensure navigation safety

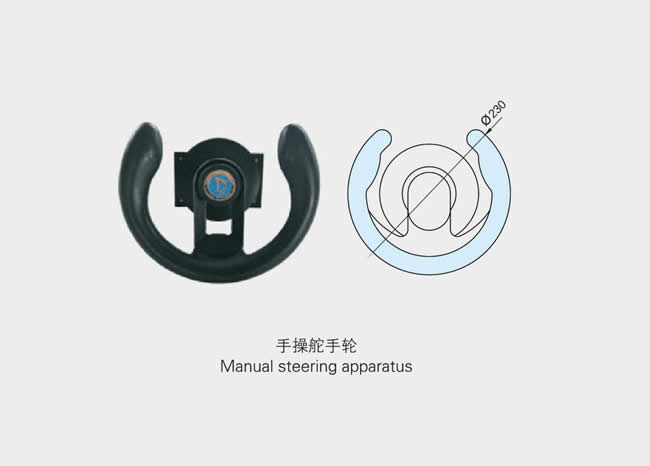

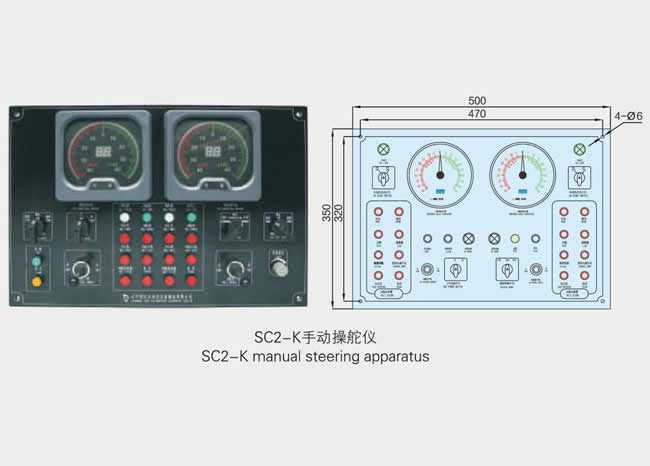

▌Product Outline Drawing

▌Classical Cases

The autopilot produced by our company has a good application in a variety of ships,including scientific research ship,cargoship,refigerat- ed cargo ship,working ship,ocean fishing ship.They are highly praised by customers.
